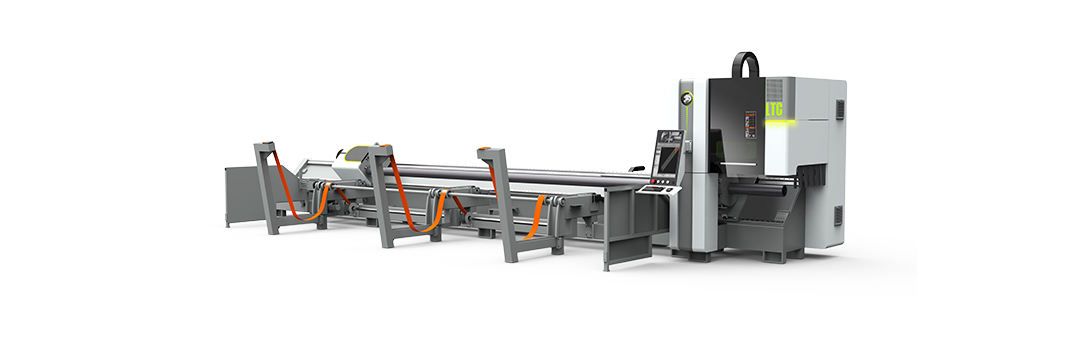

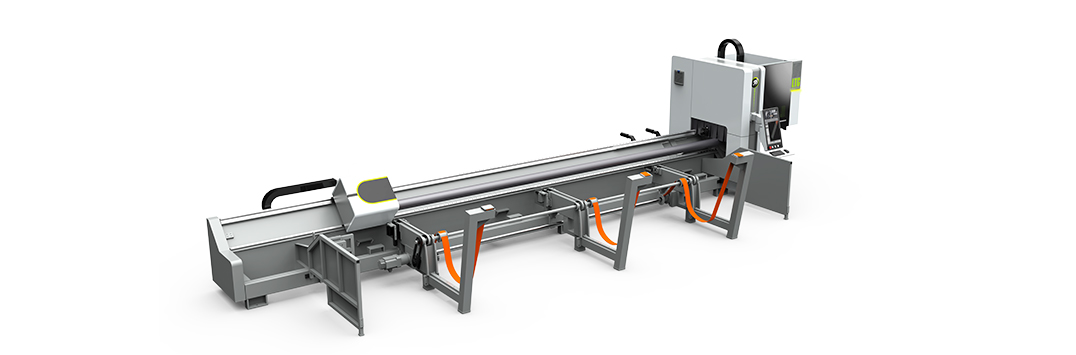

The LT-G120 3D Fully Automatic Feeding Laser Pipe Cutting Machine is designed for precision laser cutting applications. This equipment utilizes a guide rail transmission system and a precision chuck structure, capable of cutting round pipes, square pipes, elliptical pipes, and various other standard profiles. It is suitable for processing pipe materials such as stainless steel, carbon steel, and manganese steel.

Modular Design for Flexible Loading Function Selection

It offers both semi-automatic and fully automatic loading modules. The fully automatic feeding system can handle a load of 2 tons at once, while the semi-automatic system can load 6-8 pipes per cycle, saving labor and improving cutting efficiency.

Side-Mounted Welded Lathe Bed for Smooth and Stable Operation

The machine employs an open mechanical structure welded from high-quality steel, undergoing high-temperature annealing and secondary aging treatment. Its side-mounted structure lowers the center of gravity, ensuring exceptional structural rigidity and long-term operational stability.

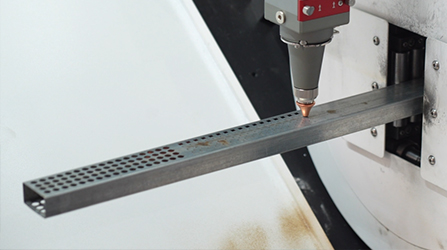

Professional 3D Laser Cutting Head for Expanded Processing Capabilities

Incorporates a customized fiber-dedicated 3D cutting head with a precision following system, enabling complex spatial 3D cutting of pipes and special-shaped materials, thereby expanding processing capabilities and precision.

High-Precision Chuck System for Minimal Remnant Material

Equipped with a mobile front chuck enabling over-chuck cutting. The rear chuck uses a four-jaw guide mechanism and pneumatic clamping method, providing stable gripping for round, square, and special-shaped pipes.
